Step-by-Step Instructions
Diagnosing potential heating failures before freezing weather strikes requires a structured approach. Watch for these nine winter HVAC checkup signs to determine whether your system requires simple homeowner maintenance or immediate professional repair.
Phase 1: Visual and Auditory System Diagnosis
Sign 1: A Yellow or Flickering Burner Flame
A healthy gas furnace burner produces a steady, crisp blue flame with perhaps a tiny fleck of light blue or pale yellow at the center tip. If your burner flame appears solid yellow, orange, or flutters erratically, incomplete combustion is taking place. This condition generates excessive soot, wastes fuel, and indicates a dangerous carbon monoxide hazard. Turn off the gas supply and contact a certified HVAC technician immediately to adjust gas pressure, clean burner orifices, or inspect the heat exchanger.
Sign 2: Strange Banging, Screeching, or Rattling Noises
Heating equipment produces a gentle hum while running, but loud mechanical noises signal imminent component failure. High-pitched squealing points to worn blower motor bearings or a slipping belt. Deep metal banging or popping upon startup reveals delayed ignition, where gas builds up in the combustion chamber before igniting violently. Rattling indicates loose panel screws or a failing draft inducer motor fan. Tighten accessible cabinet screws, but call a professional if noises persist inside the blower motor housing.
Sign 3: Lingering Musty, Chemical, or Electrical Odors
When you first fire up your furnace in autumn, burning off a light summer dust layer for thirty minutes is normal. However, sour, musty smells suggest mold colonizing inside the evaporator coil housing or ductwork. Acrid, metallic, or burning plastic smells point to overheated wiring harnesses or a melting blower motor capacitor. A rotten egg odor signals a natural gas leak; evacuate your home immediately and contact your utility provider from outside.
Phase 2: Airflow, Filtration, and Ductwork Inspection
Sign 4: Weak or Inconsistent Airflow Across Living Spaces
Walk from room to room with the heating cycle running. If air barely trickles from supply registers, your system faces severe restriction. Start by checking your furnace filter; a dust-clogged filter chokes static pressure, forcing the blower to work against heavy resistance. Replacing a dirty filter with a fresh pleated model immediately reduces system energy use by 5% to 15%. If the filter is clean, inspect your ductwork seams in the attic or crawlspace for loose joints and disconnected flex lines.
Sign 5: Persistent Cold Spots and Thermostat Discrepancies
If your hallway thermostat reads 72 degrees Fahrenheit while bedrooms remain chilly at 64 degrees, your system struggles with balanced heat distribution. This imbalance often stems from improper duct sizing, failing zoning dampers, or leaky return plenums pulling cold crawlspace air into circulation. Test your thermostat calibration by taping an accurate digital thermometer directly beside the wall unit; if the readings differ by more than two degrees, recalibrate or replace the thermostat.
Sign 6: Excessive Dust Accumulation and Dry Indoor Air
A sudden surge of dust settling on furniture—accompanied by static electricity and irritated sinuses—signals filtration and humidity trouble. Leaky supply ducts create negative pressure that sucks attic insulation fibers and dirt straight into the airstream. Inspect your return drop connections for gaps, seal open joints using foil-backed butyl tape, and consider adding an integrated bypass humidifier to maintain a comfortable 35% to 45% indoor relative humidity level throughout winter.
Phase 3: Operational Cycles and Efficiency Monitoring
Sign 7: Frequent Short-Cycling Behavior
Short-cycling occurs when your furnace turns on, runs for only two to three minutes, shuts off abruptly, and repeats this cycle continuously without warming the house. This issue typically triggers when an overheated heat exchanger trips the high-limit safety switch due to restricted airflow or a dirty flame sensor. Clean your flame sensor gently using ultra-fine steel wool (0000 grit) to remove micro-oxidation, and swap in a clean filter. If rapid cycling continues, call a pro to test the heat exchanger and limit control circuits.
Sign 8: Unexplained Spikes in Your Monthly Heating Bills
Compare your recent energy bills against the same billing cycles from the previous year. If your fuel consumption or kilowatt-hour usage jumped noticeably while household routines and outdoor temperatures stayed consistent, your HVAC system has lost operational efficiency. Dirty burner assemblies, low refrigerant levels in heat pumps, or failing blower capacitors force systems to run double their normal cycle lengths to achieve basic target temperatures.
Sign 9: The Heating Equipment Has Reached Its Senior Years
According to ENERGY STAR guidelines, standard residential gas furnaces carry an average operational lifespan of 15 to 20 years, while air-source heat pumps typically last 10 to 15 years. If your heating unit sits within or beyond these operational windows and requires frequent minor repairs, servicing becomes a critical safety and efficiency assessment. Modern high-efficiency furnaces achieve annual fuel utilization efficiency (AFUE) ratings above 95%, yielding massive fuel savings compared to aging 70% AFUE units.
Phase 4: Professional Verification and Safety Clearance

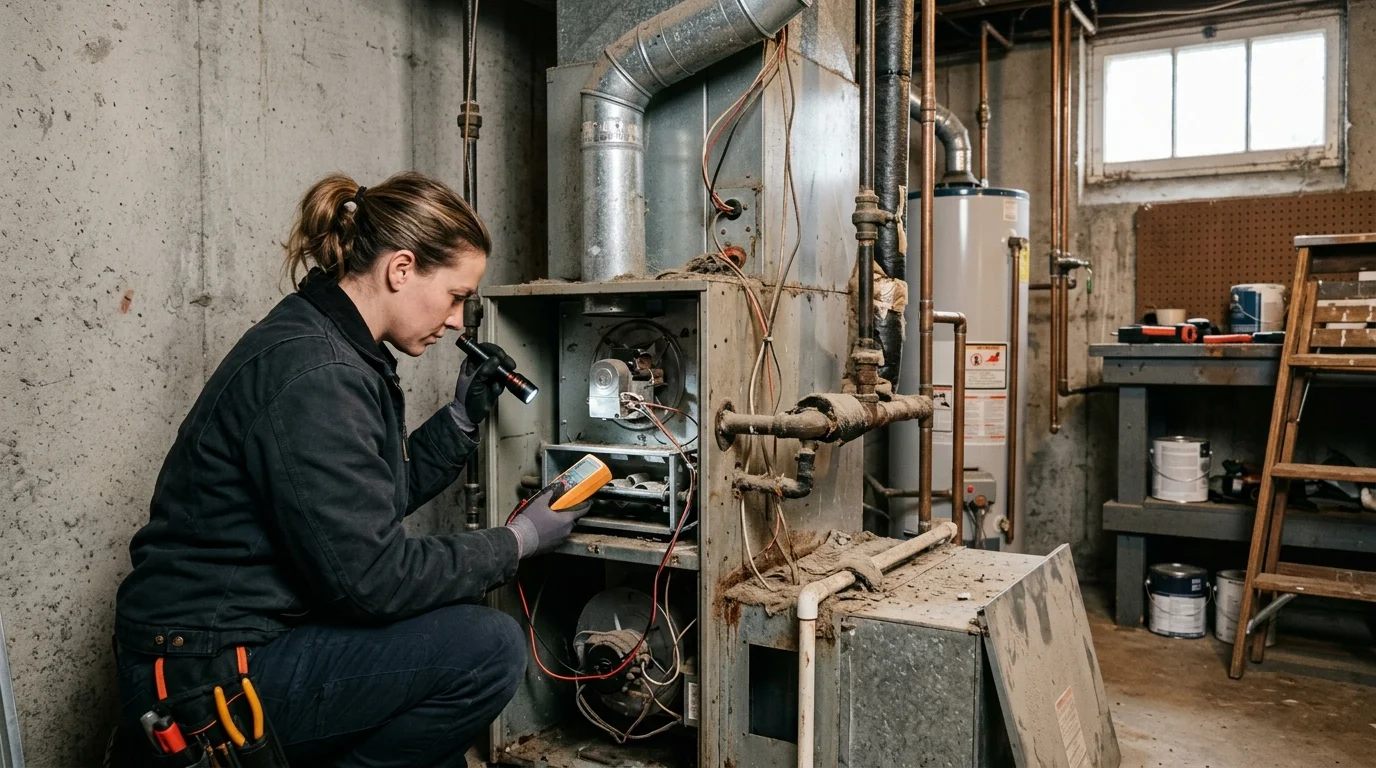

While DIY maintenance handles filter swaps, register cleaning, and visual inspections, hire a North American Technician Excellence (NATE) certified technician to conduct an exhaustive pre-winter tune-up. A professional technician completes essential technical tasks, including:
1. Measuring static duct pressure across both sides of the blower wheel.
2. Testing manifold gas pressure and calibrating fuel-to-air combustion ratios.
3. Inspecting the internal heat exchanger with a borescope camera to spot micro-fissures.
4. Testing electrical amp draws on the inducer motor, blower motor, and hot surface igniter.
5. Verifying that safety limit switches, rollout sensors, and carbon monoxide interlocks shut the unit down instantly during abnormal operating conditions.
